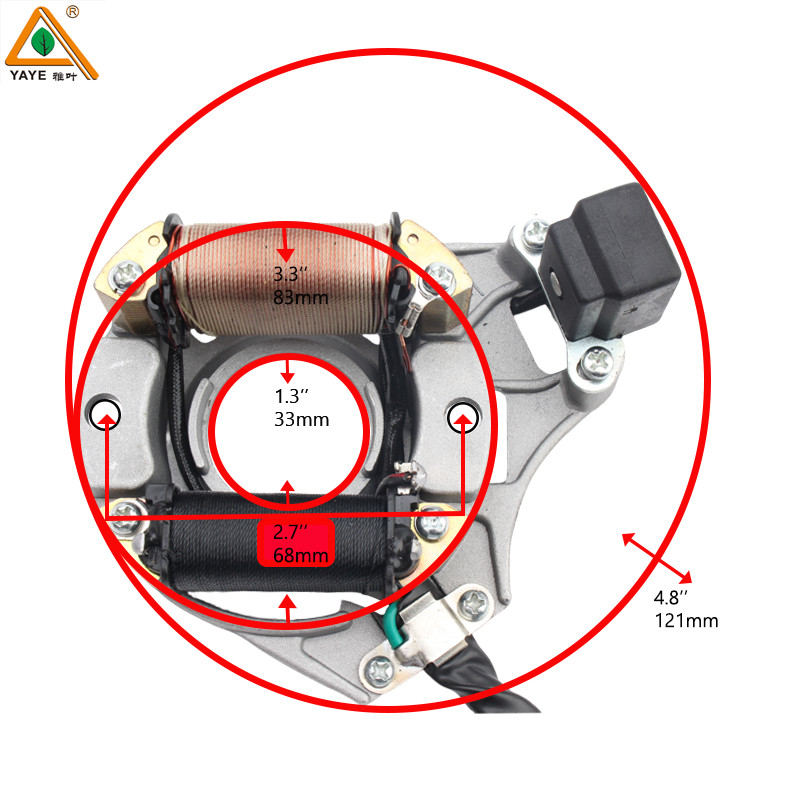

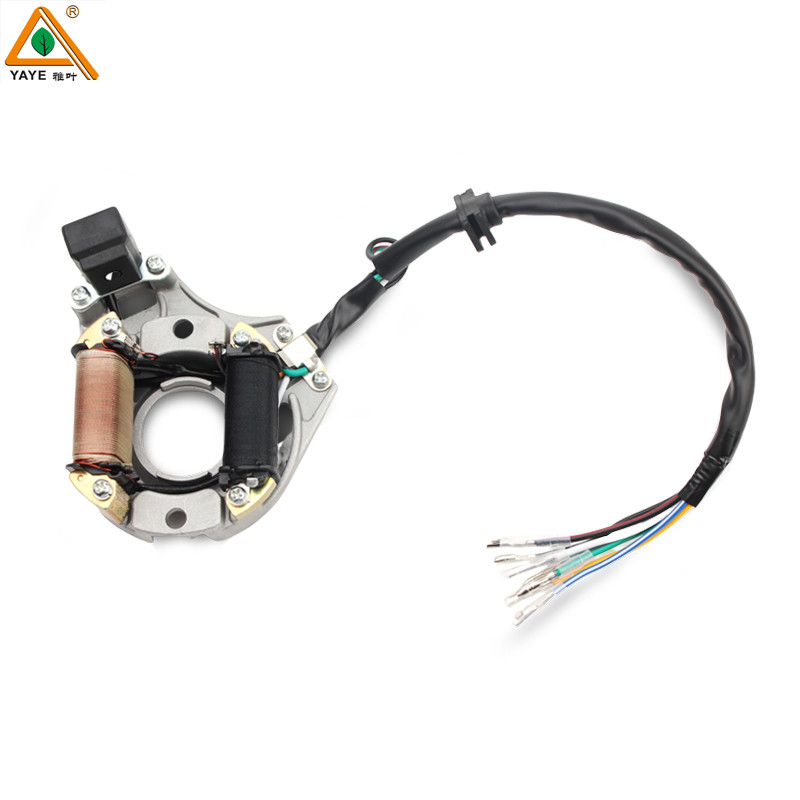

YAYE Magneto generator stator coil DY100 for Motorcycle off-road Aluminum alloy and copper wire Generator ignition coil

Product Introduction

YAYE Magneto generator stator coil DY100 for Motorcycle off-road

Aluminum alloy and copper wire Generator ignition coil.

The stator coil of the DY100 magnetic motor is a core component

in the motorcycle magnetic motor system, mainly responsible for

generating induced current during the operation of the magnetic

motor, providing necessary electrical energy for the motorcycle's

ignition system, lighting system, and battery charging.

The stator coil of a magnetic motor, as an important component of

the magnetic motor, is usually wound from the coil and fixed on

the stator part of the magnetic motor. When the rotor of a magneto

(usually with permanent magnets) rotates, its magnetic field

alternately passes through the stator coils, generating induced

currents within the coils. These induced currents are subsequently

used for motorcycle ignition, lighting, and battery charging.

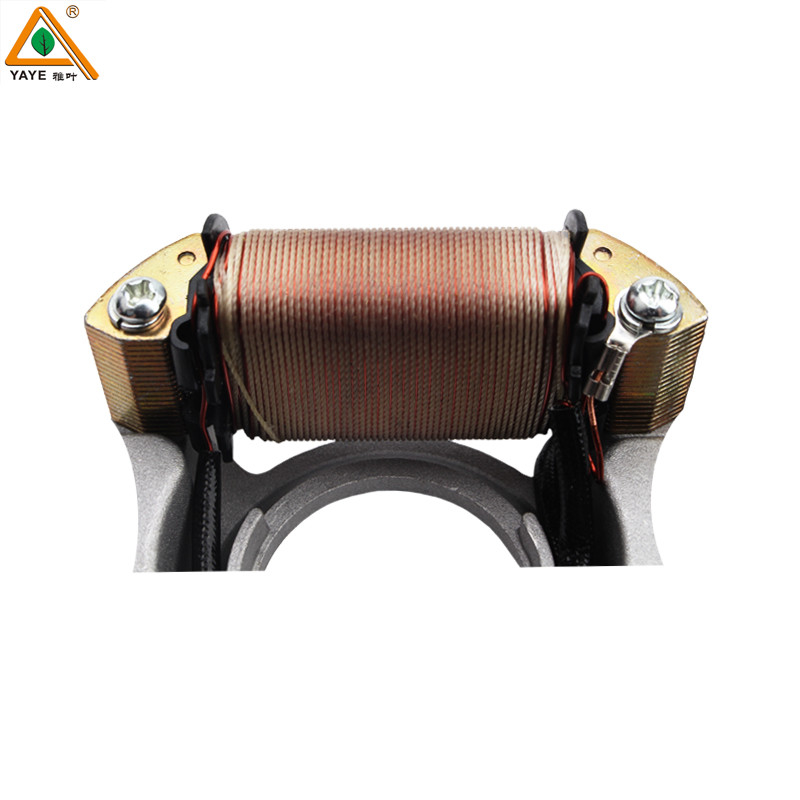

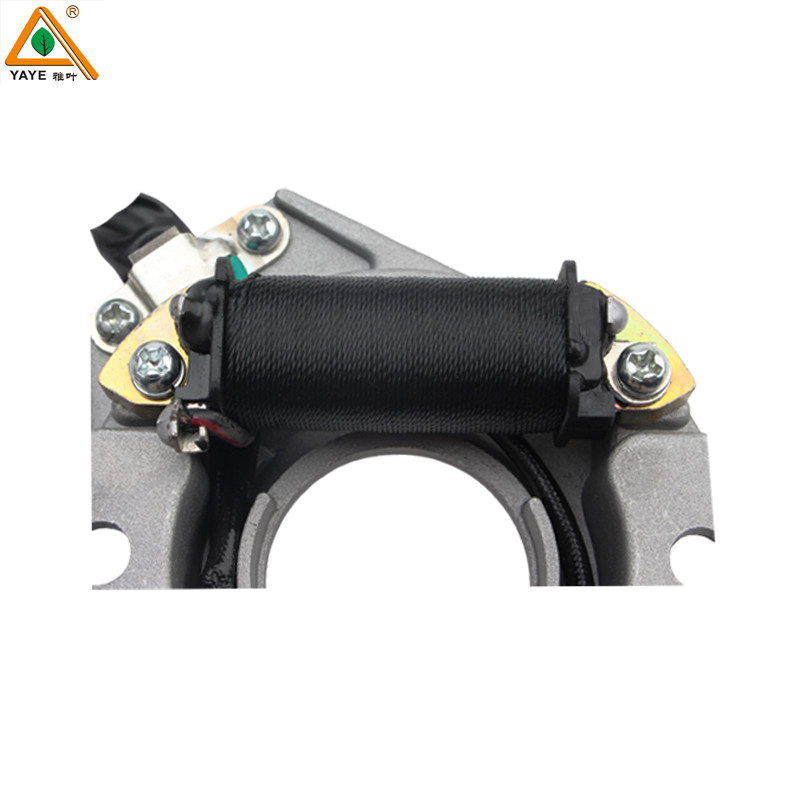

The stator coil of the magnetic motor is formed by winding copper

or aluminum wire around the iron core, and its shape and number

of turns depend on the specific design.
Has good electromagnetic induction performance and can efficiently

convert mechanical energy into electrical energy.
Has certain heat resistance and corrosion resistance to cope with

the complex working environment of motorcycles.
Key components may be imported to ensure their performance and

reliability.

When the rotor of a magnetic motor rotates, the magnetic field

generated by the permanent magnet on it will also rotate. This

rotating magnetic field will alternately pass through the stator coil,

causing a change in the magnetic flux inside the coil. According to

the law of electromagnetic induction, this change in magnetic flux

will generate induced electromotive force within the coil, which in

turn will produce induced current. These induced currents were

subsequently used in various electrical devices of motorcycles.

Applicable models: Motorcycle DY100 and its similar or compatible

four stroke motorcycles, such as Haojue motorcycle DY100 curved

beam, etc.
Performance parameters:
Voltage: Usually 12V, matching the standard voltage of the

motorcycle electrical system.
Power: Depending on the specific design, but generally sufficient

to meet the ignition, lighting, and charging needs of motorcycles.
Other features: such as battery overcharge protection and open

circuit protection function, automatic adjustment of charging current

with charging voltage, etc. These features help improve the

reliability and service life of the stator coil of the magnetic motor.

Due to the fact that the stator coil of a magneto is an important

component in the electrical system of a motorcycle, its performance

and condition have a direct impact on the normal operation of the

motorcycle. If problems such as difficulty starting the motorcycle,

insufficient lighting, or decreased battery power are found, it may be

necessary to check and replace the stator coil of the magnetic

motor. When replacing, the coil that matches the vehicle model

should be selected and installed and debugged according to the

correct steps. At the same time, regular maintenance and inspection

of the magneto system is also an important measure to maintain its

good working condition.

Product Paramenters
