YAYE JH70 Motorcycle Magneto Stator Coil motorcycle engine assembly For JIANLING-HONDA 70 A Motorcycle Parts

Product Introduction

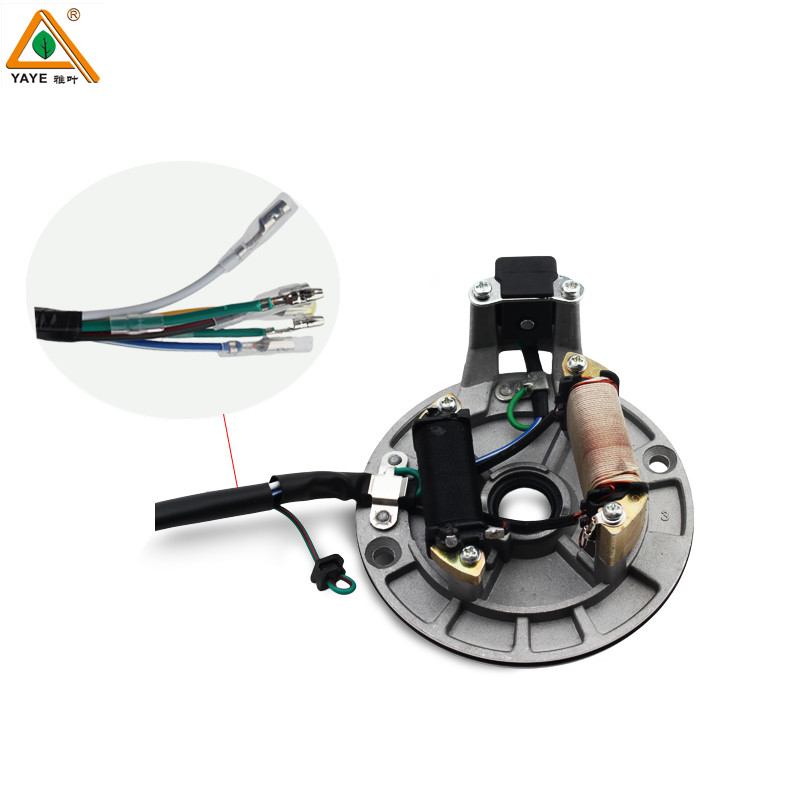

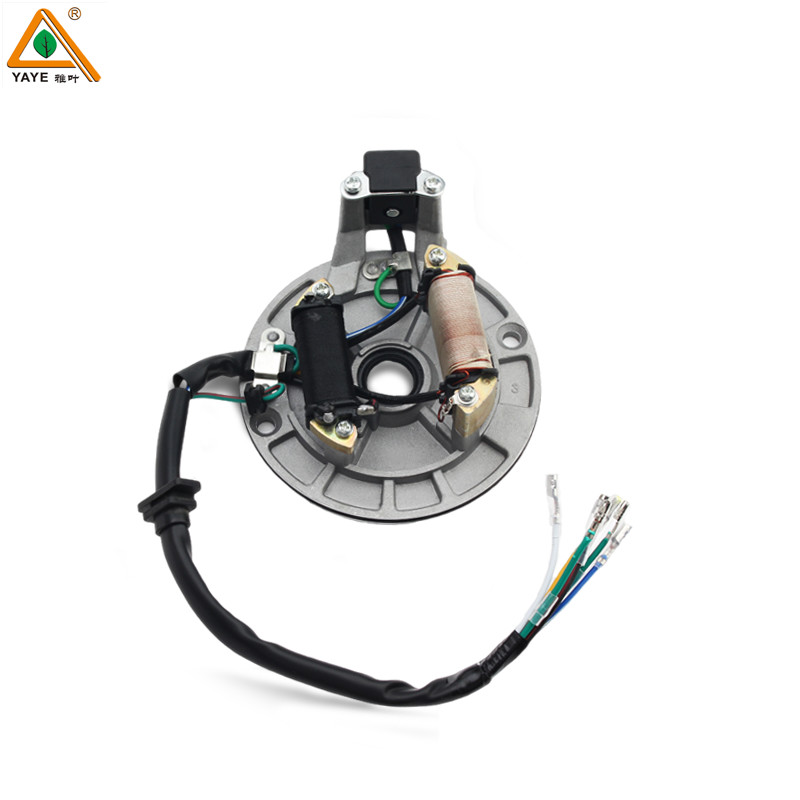

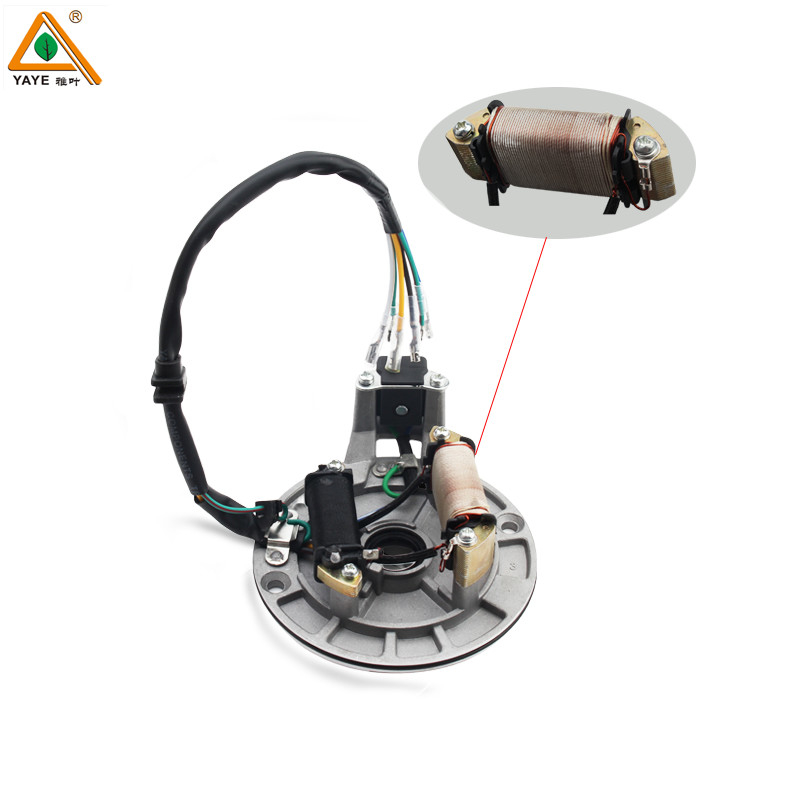

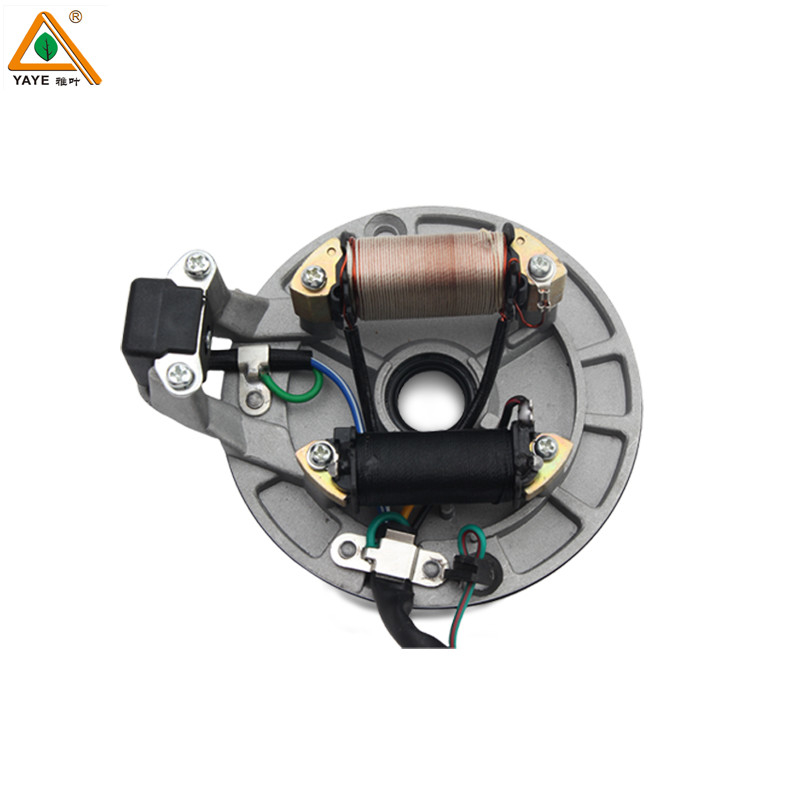

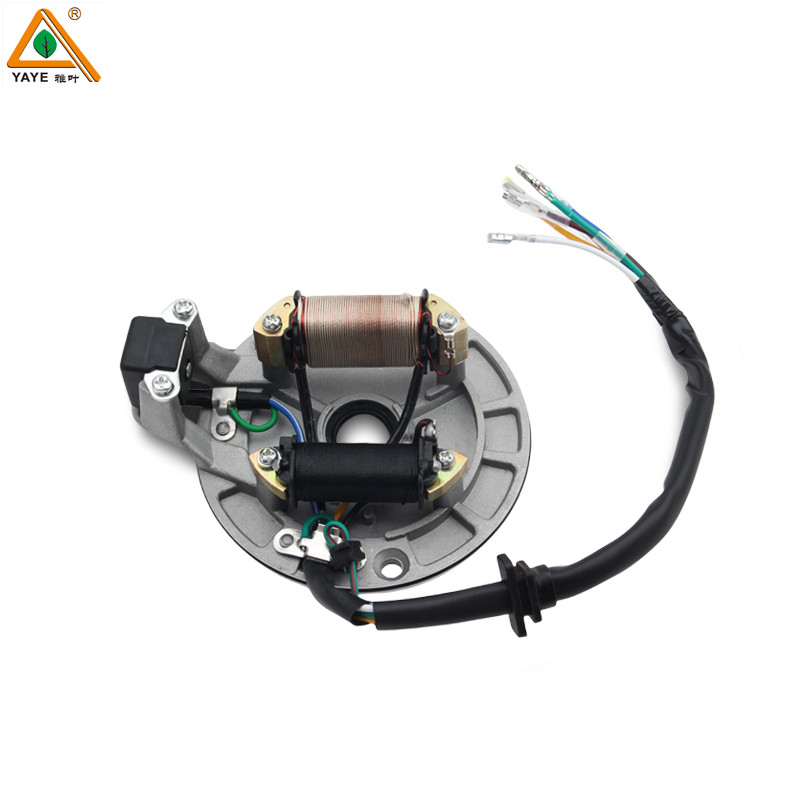

YAYE JH70 Motorcycle Magneto Stator Coil motorcycle engine assembly

For JIANLING-HONDA 70 A Motorcycle Parts.

The stator coil of the magnetic motor of the Jialing Honda JH70 motorcycle

is a key component in the Jialing Honda motorcycle magnetic motor

system, which is crucial for the ignition and power supply of the motorcycle.

The following is a detailed explanation of the stator coil:
The stator coil of a magneto is an electromagnetic coil installed on the

stator of a motorcycle magneto, used to generate a magnetic field and

induced current.
Function: In a magneto system, the stator coil and rotor (usually containing

permanent magnets) work together to generate high voltage electricity

through electromagnetic induction principles, which is then distributed to

the spark plugs of each cylinder to achieve ignition.
Working principle: When the rotor of the magnetic motor rotates, the

magnetic field generated by the permanent magnet on it will pass through

the stator coil.
The change in magnetic field induces current in the stator coils, which is

then used in ignition systems or other power systems.
Structure and Characteristics
Structure: The stator coil is usually made of conductive material (such as

copper wire) and is fixedly installed on the stator part of the magnetic motor.
characteristic:
High temperature resistance: Due to the high temperature generated by

motorcycle engines during operation, stator coils need to have good high

temperature resistance performance.
Wear resistance: Under long-term use, the stator coil needs to be able to

withstand certain mechanical vibrations and wear.
Good stability: In order to ensure the stable operation of the ignition system,

the stator coil needs to have stable electrical performance.
The stator coil of a magnetic motor is an important component of the

motorcycle ignition system, and its performance directly affects the starting,

acceleration, and driving stability of the motorcycle.
If the stator coil malfunctions or is damaged, it may cause the motorcycle

to fail to start, ignite poorly, or stall while driving.
Maintenance and upkeep
Regularly check the electrical connections and insulation performance of

the stator coils to ensure they are in good condition.
Pay attention to keeping the magneto system clean and dry, avoiding

moisture and impurities from entering and causing short circuits or damage.
If there are signs of damage or performance degradation in the stator coil,

it should be replaced promptly to ensure the normal operation of the

motorcycle.
JH70 is a motorcycle jointly produced by Jialing Company and Honda

Company, with the full name Jialing Honda JH70 Motorcycle
essential information
Name: Jialing Honda JH70 Motorcycle
English name: Jialing Honda JH70 motorcycle
Listing time: 1983
Vehicle positioning: entry-level motorcycle, also a classic agricultural vehicle

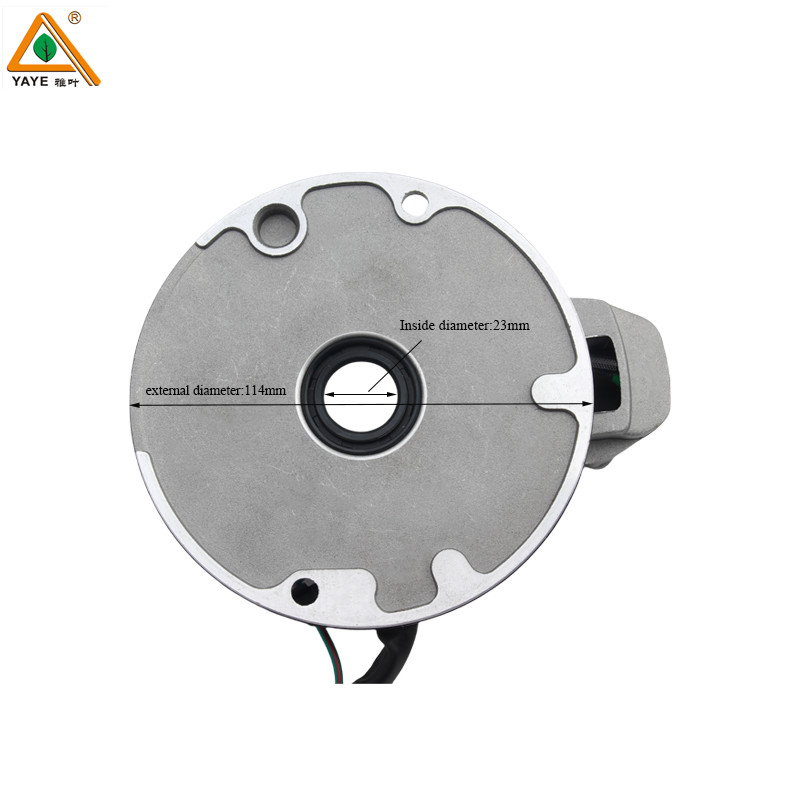

Product Paramenters
