Motorcycle accessories wheel hub three wheel motorcycle front wheel 5 hole Ring interchanger 6304 brake pan

Product Introduction

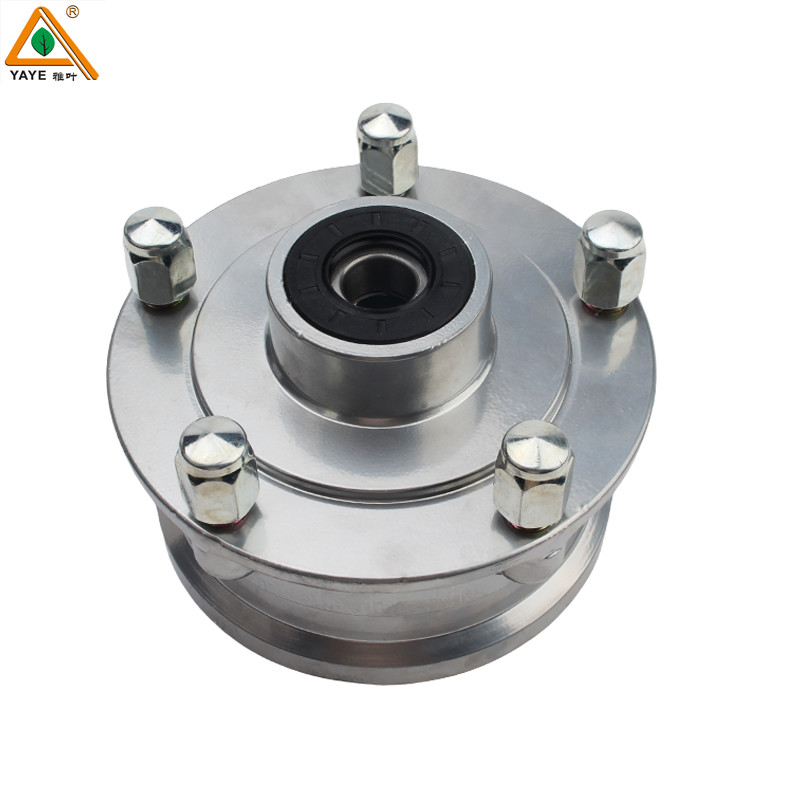

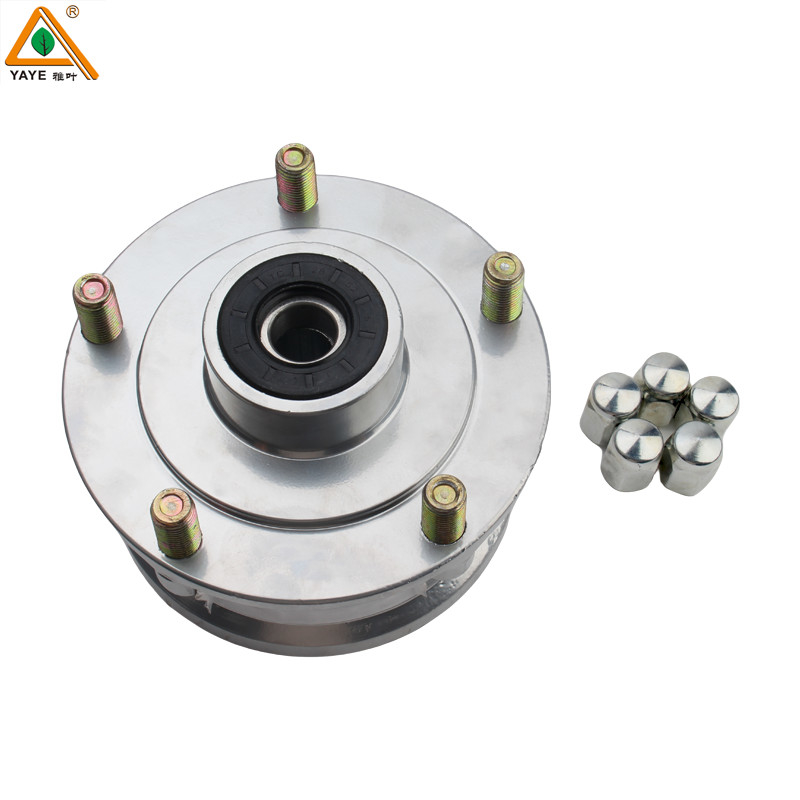

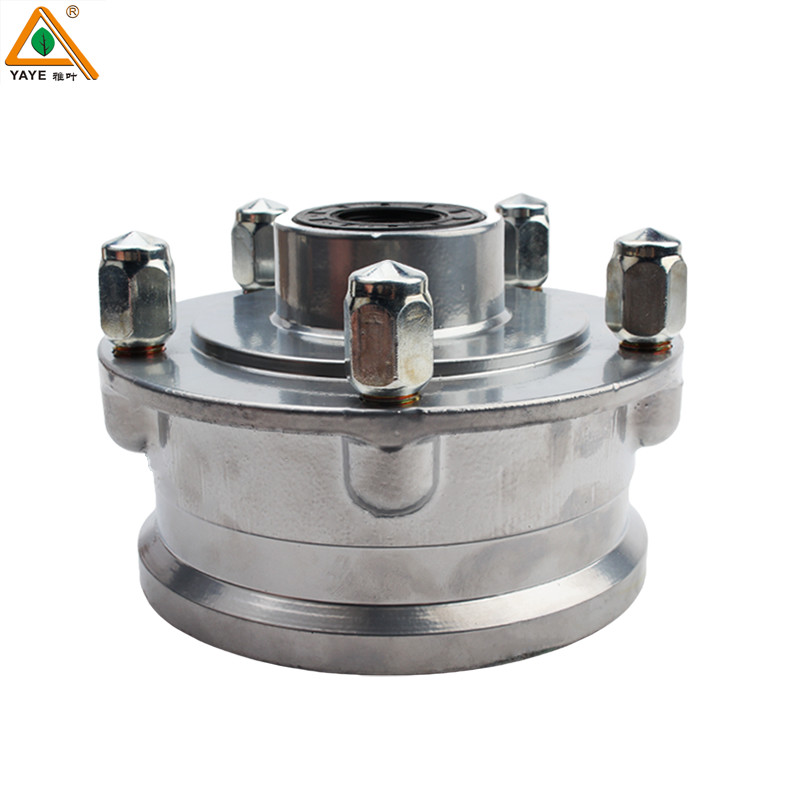

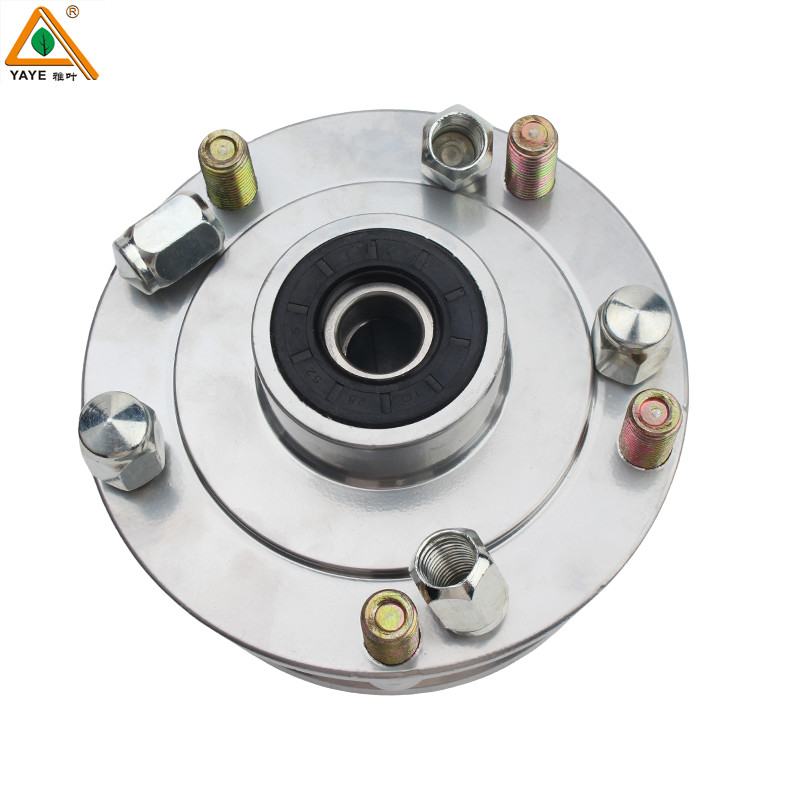

Motorcycle accessories wheel hub three wheel motorcycle front wheel 5 hole

Ring interchanger 6304 brake pan.

Five hole front wheel interchange hub refers to a front wheel hub with five

bolt holes, which allows the tire and hub to be tightly fixed to the vehicle

through bolts.

1, Basic structure of wheel hub
A wheel hub usually consists of two parts: the wheel rim and the spokes
Wheel rim: The part in direct contact with the tire that supports the tire and

determines its direction.
Spoke: The part that connects the wheel rim and the center hole, playing

an important load-bearing role, and its strength determines the overall

strength of the wheel hub.
Five hole front wheel interchange hub refers to the hub having five bolt

holes for installing and securing tires.

2, Characteristics of five hole front wheel interchangeable hub
Fixed method: Connected to the wheel axle or suspension system of the

vehicle through five bolt holes, this multi bolt design improves the connection

strength and stability between the wheel hub and the vehicle.
Applicability: The five hole design is commonly used in various vehicle models.
Interchangeability: Under certain specifications and parameter requirements,

the five hole front wheel interchange hub can be interchanged between

different vehicles or different front wheels of the same vehicle, improving the

convenience of maintenance and replacement.

3, Explanation of relevant parameters
Hole spacing (PCD): refers to connecting the bolt holes on the wheel hub

into a circular ring, and the diameter of this ring is the hole spacing. For

example, "5 × 120" means there are 5 bolt holes, and the diameter of the

circle connected by these 5 bolt holes is 120mm. This is one of the important

parameters that must be considered when choosing a wheel hub.
Central hole (CB): A fixed hole at the center of the wheel hub that connects to

the drive shaft. Its diameter must match the diameter of the vehicle's drive

shaft to ensure that the wheel hub can be installed correctly and run stably.
Offset distance (ET): refers to the distance between the wheel hub mounting

plate and the centerline of the wheel hub width, which affects the overall

performance and appearance of the vehicle after the wheel hub is installed.

The larger the offset, the closer the wheel hub is to the body after installation;

On the contrary, it will shift further outward.

4, Precautions
Choose a wheel hub that matches the vehicle: When replacing or selecting

a five hole front wheel interchange hub, it is necessary to ensure that it

matches the vehicle's transmission shaft diameter, hole spacing, and other

parameters to ensure correct installation and safe driving.
Pay attention to the quality and performance of the wheels: High quality

wheels can not only improve the overall performance and appearance of the

vehicle, but also extend its service life and reduce the occurrence of failures.

Therefore, when choosing wheels, priority should be given to well-known

brands and high-quality products.
Follow the correct installation and replacement process: When replacing or

installing the wheel hub, follow the correct operating procedures and safety

regulations to ensure that the installation is correct, secure, and will not

cause damage to the vehicle.

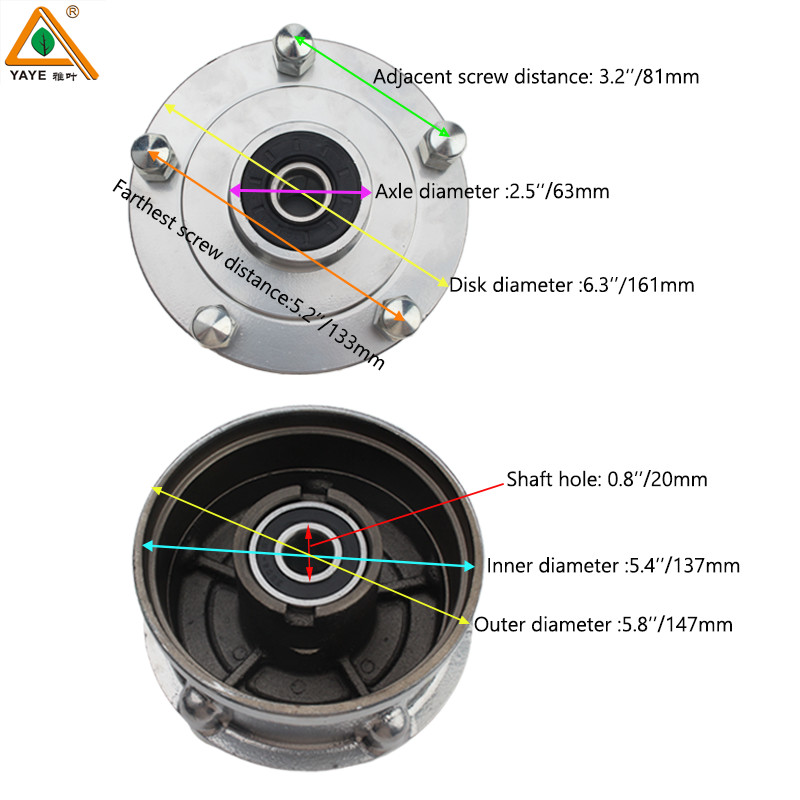

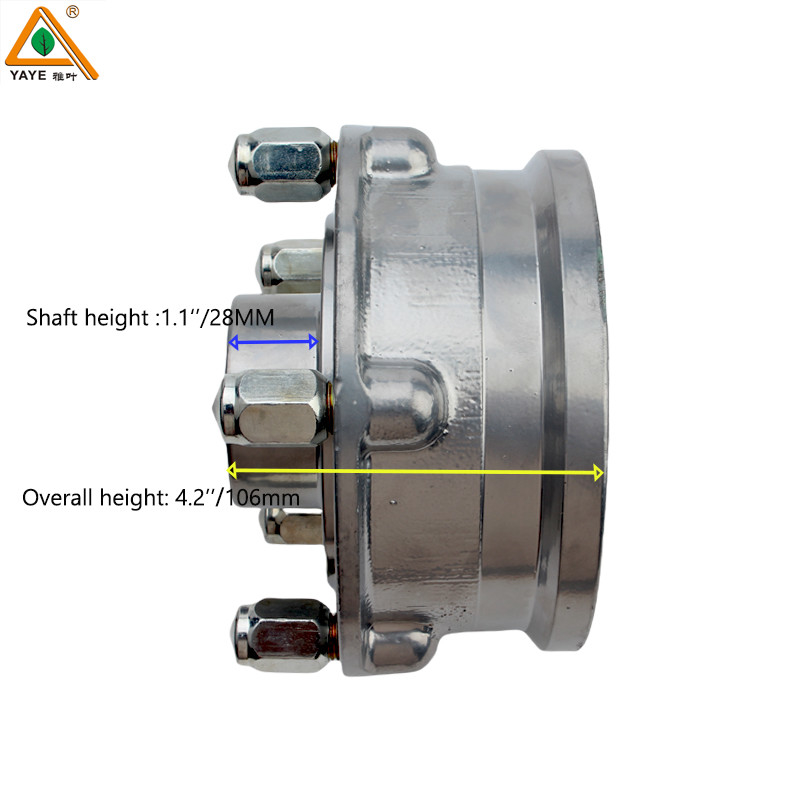

Product Paramenters
